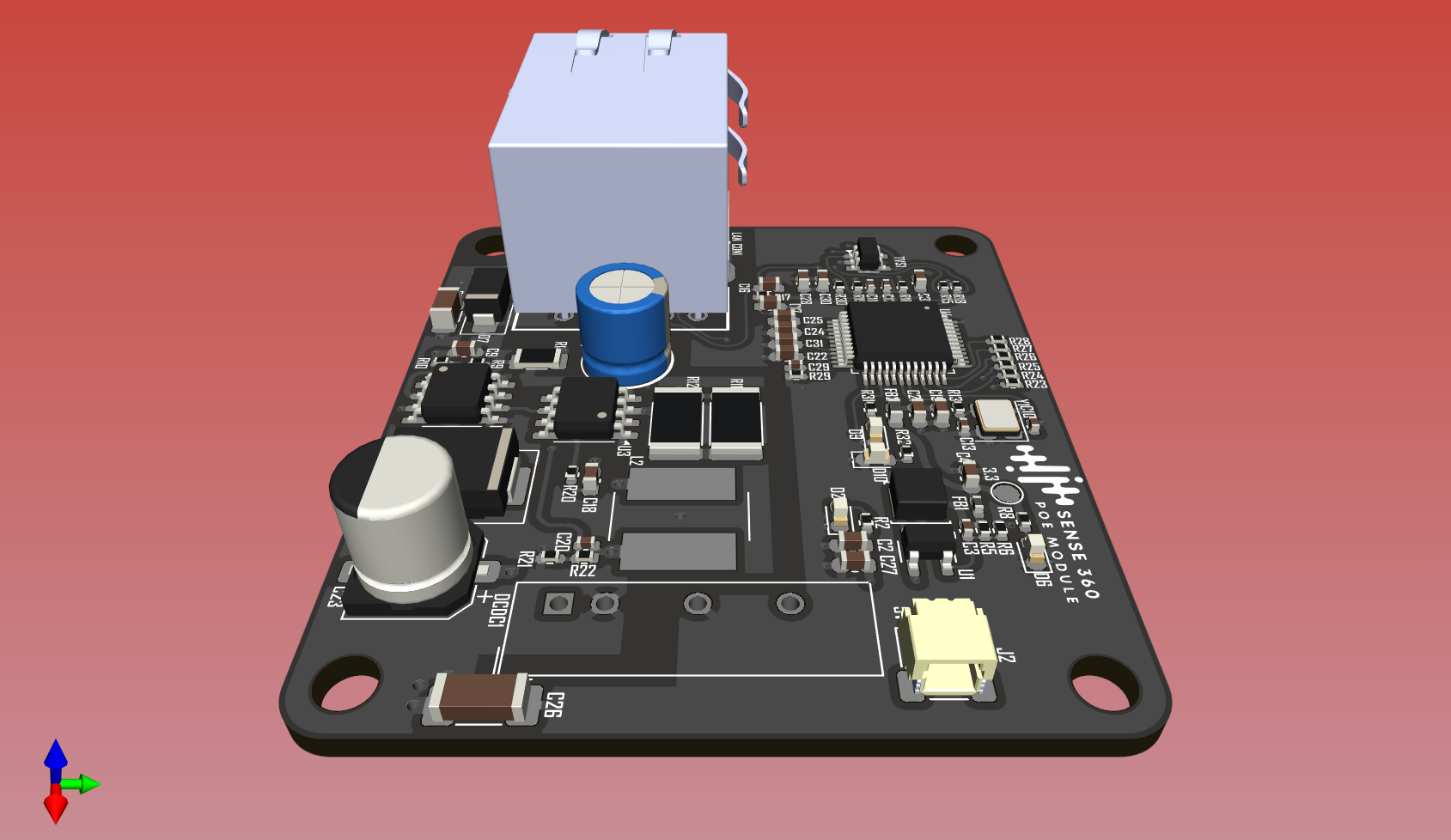

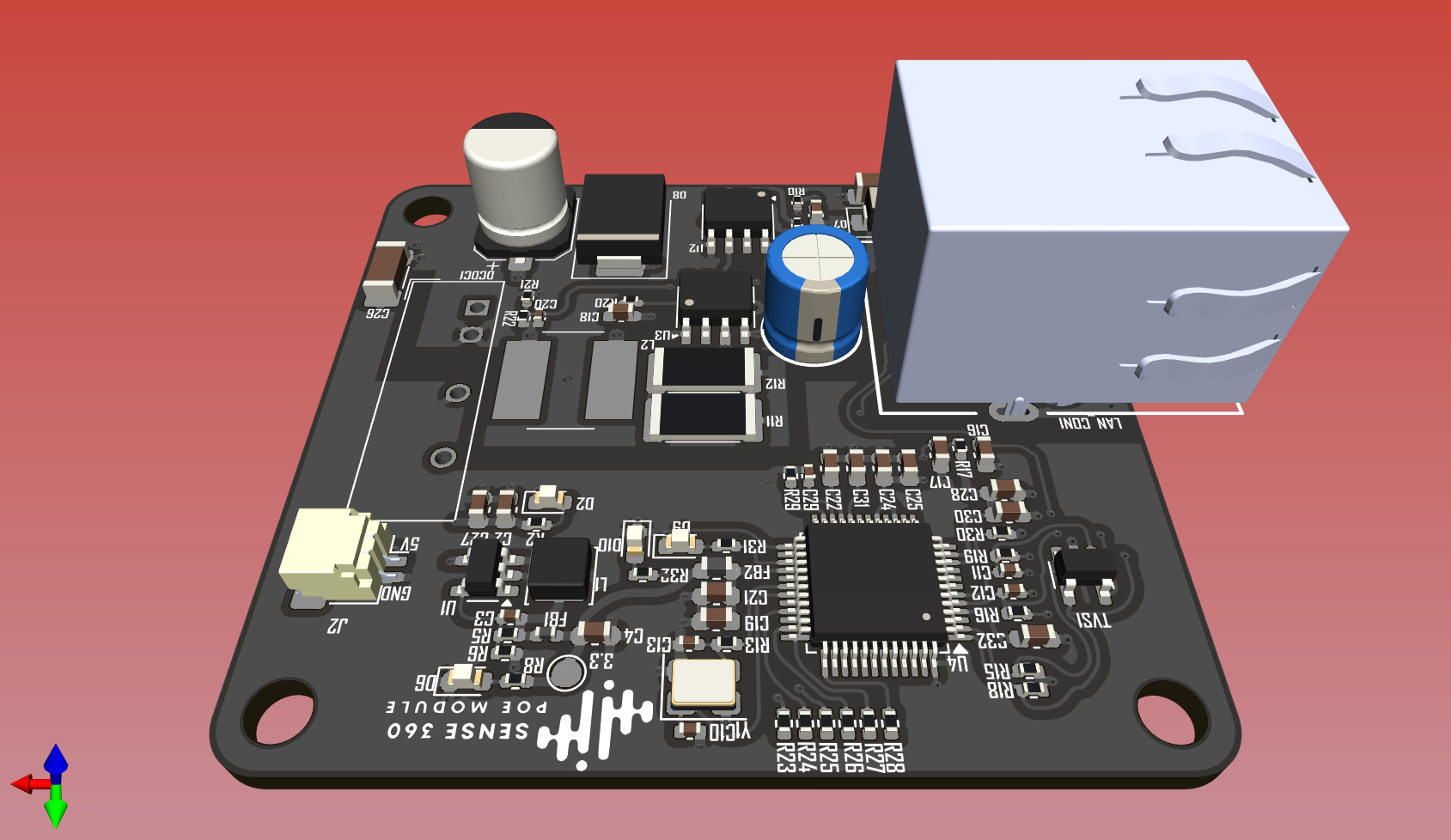

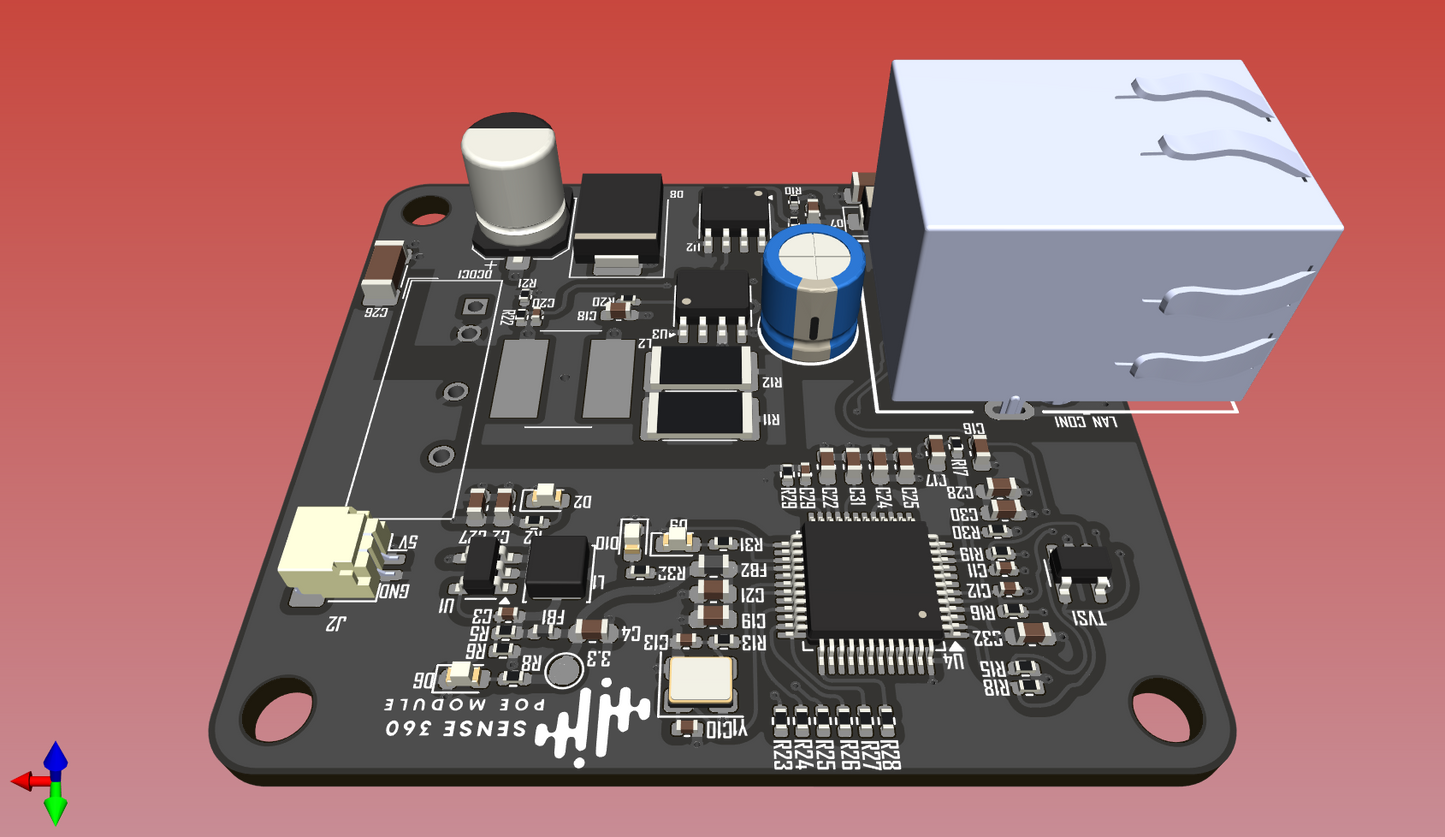

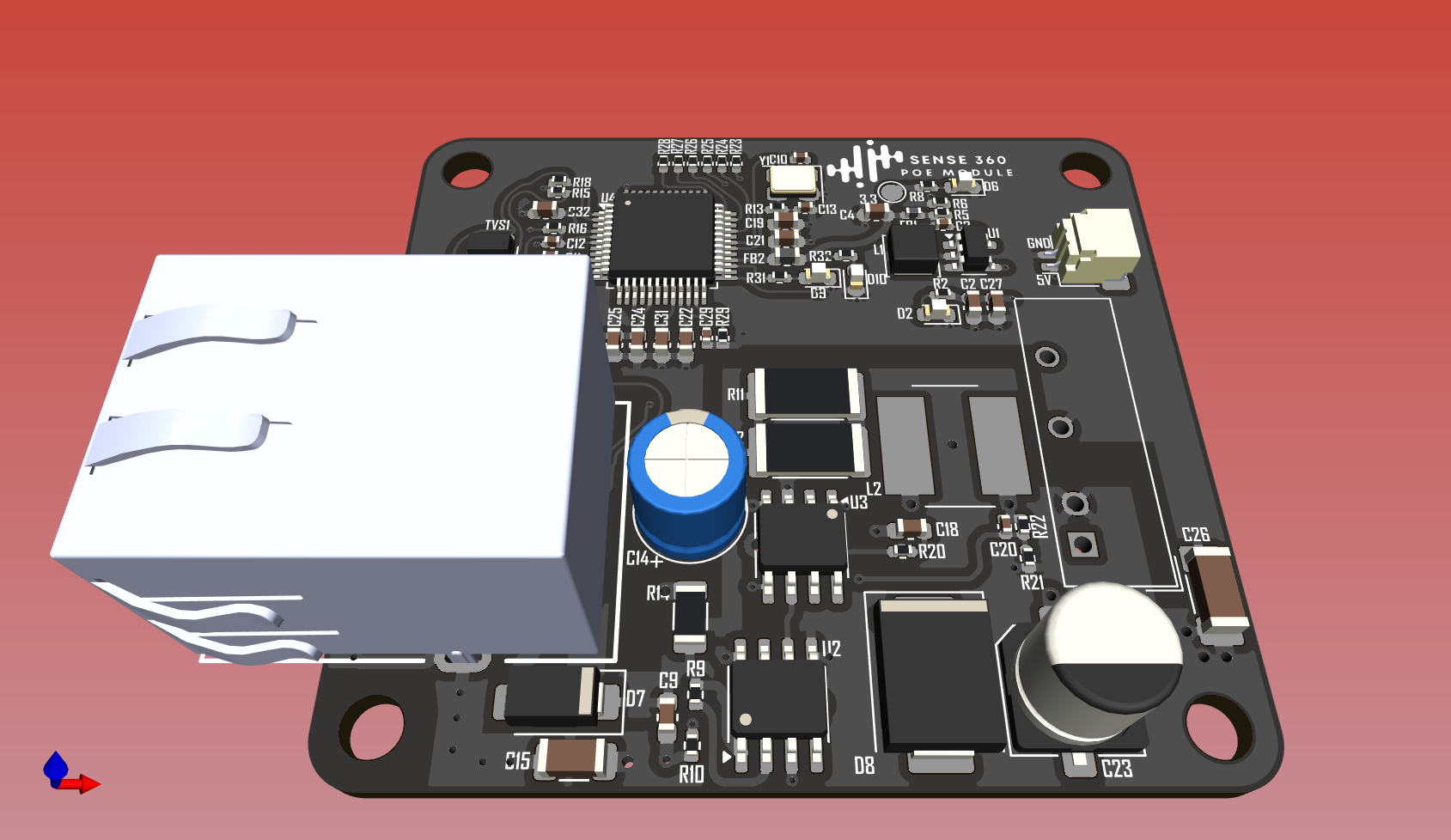

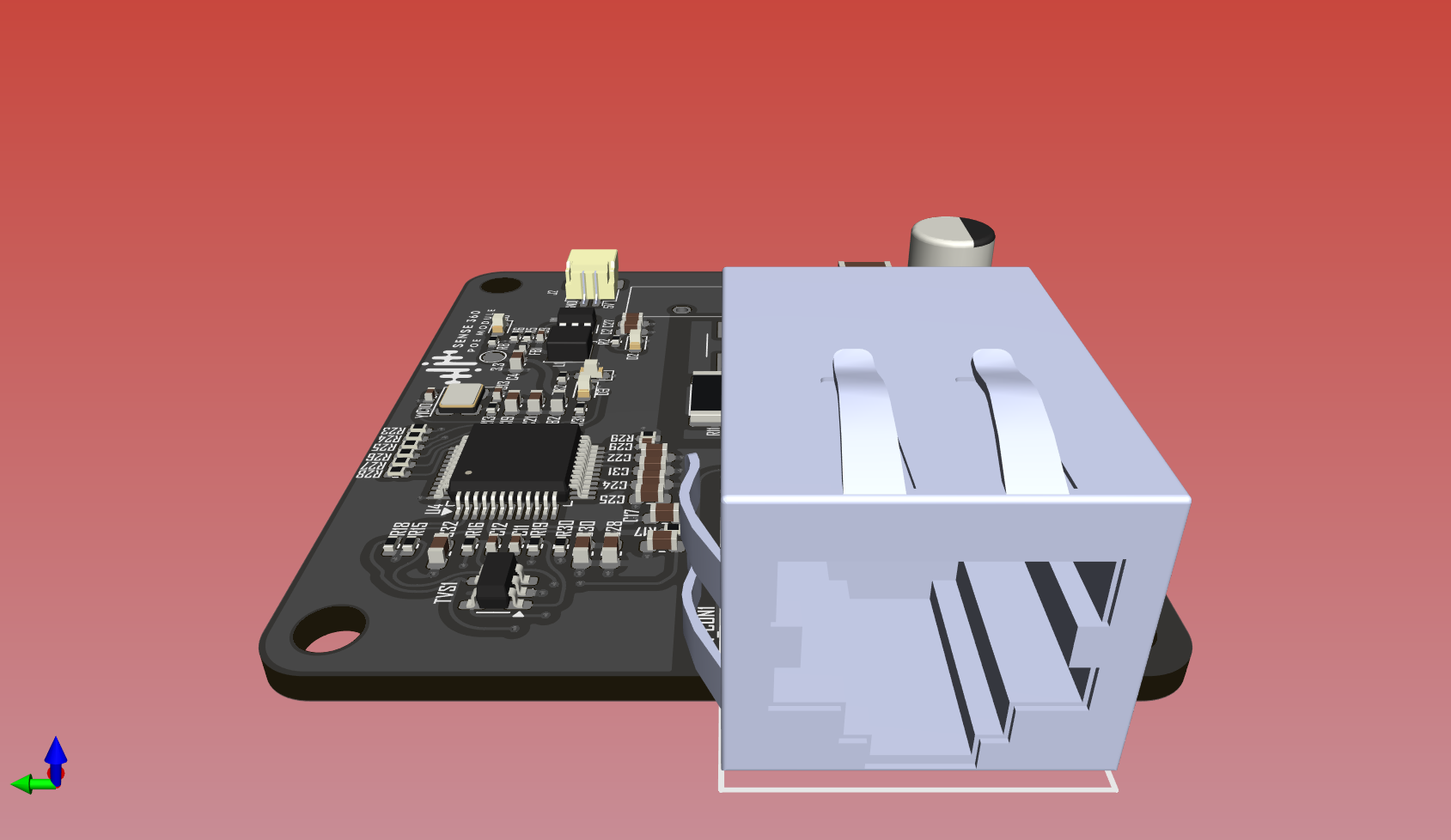

*Sense 360 POE Module – Power over ethernet Power Expansion

The Sense360 PoE Module delivers both power and Ethernet data to your Sense360 Core using a single cable. Built on an IEEE 802.3af/at compliant controller with galvanic isolation, it ensures safe, reliable, and efficient 5V DC output — no separate power supply required.

Key Features

• PoE input (802.3af/at compliant) — power + data via one Ethernet cable
• Onboard TPS2378 PoE controller with surge and ESD protection
• Isolated DC-DC conversion for clean, regulated 5V output Integrated W5500 Ethernet controller for high-performance networking
• Resettable fuse and filtering for long-term system protection
• Secure screw-terminal outputs to power the Sense360 Core and expansion modules

System Compatibility

• Fully compatible with the Sense360 Core
• Powers all official Sense360 modules: Fan, Presence, AirIQ, Comfort

Typical Applications

• Single-cable installation for ceiling or wall-mounted devices
• Powering Sense360 platforms in homes, offices, and commercial environments
• Smart sensors, IoT hubs, and automation systems where PoE is available
