*Sense360 AirIQ Module – Celling - Pro-Grade Air Quality & Pressure Expansion
*Sense360 AirIQ Module – Celling - Pro-Grade Air Quality & Pressure Expansion
Regular price
£45.99 GBP
Regular price
Sale price
£45.99 GBP
Taxes included.

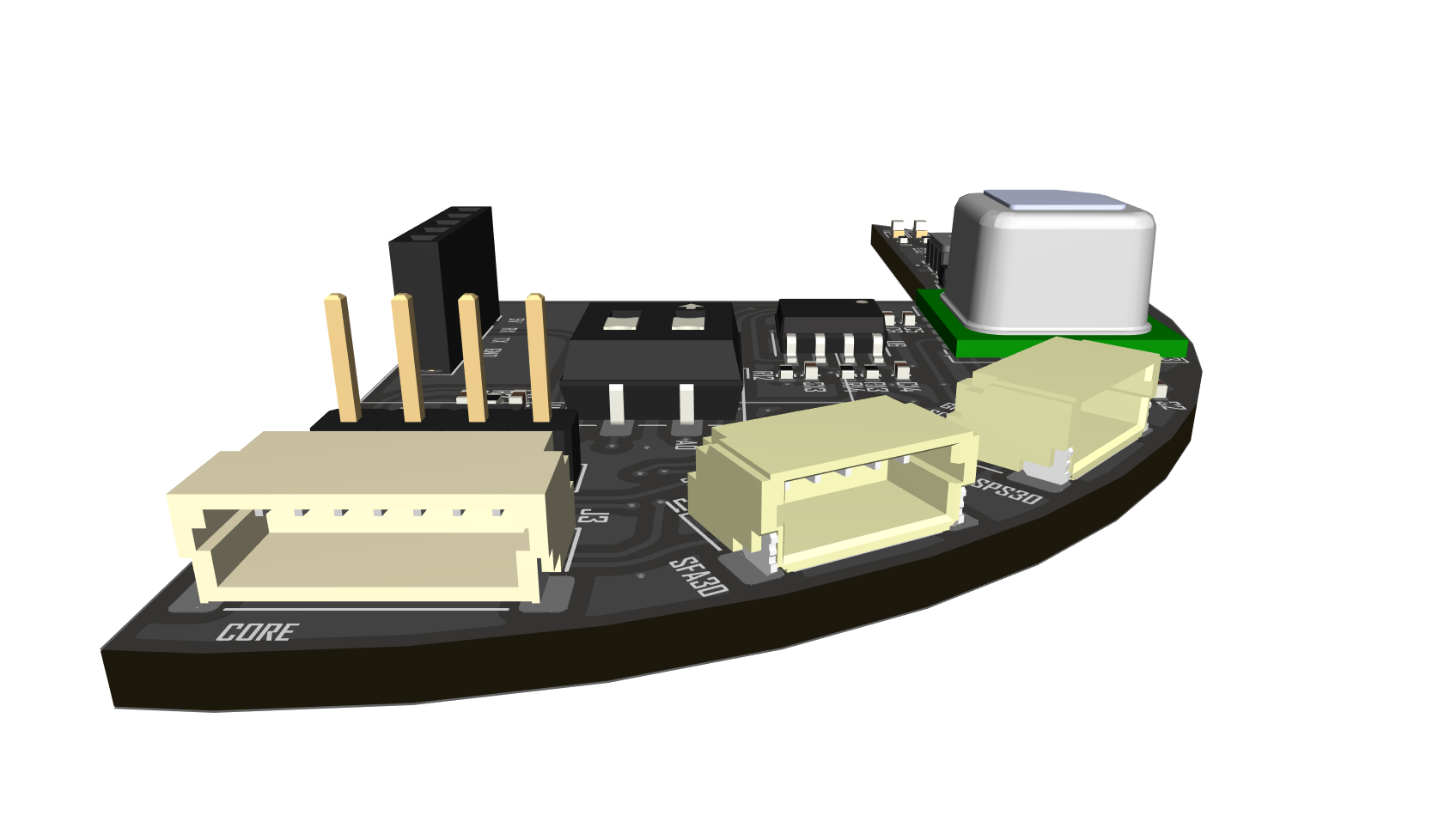

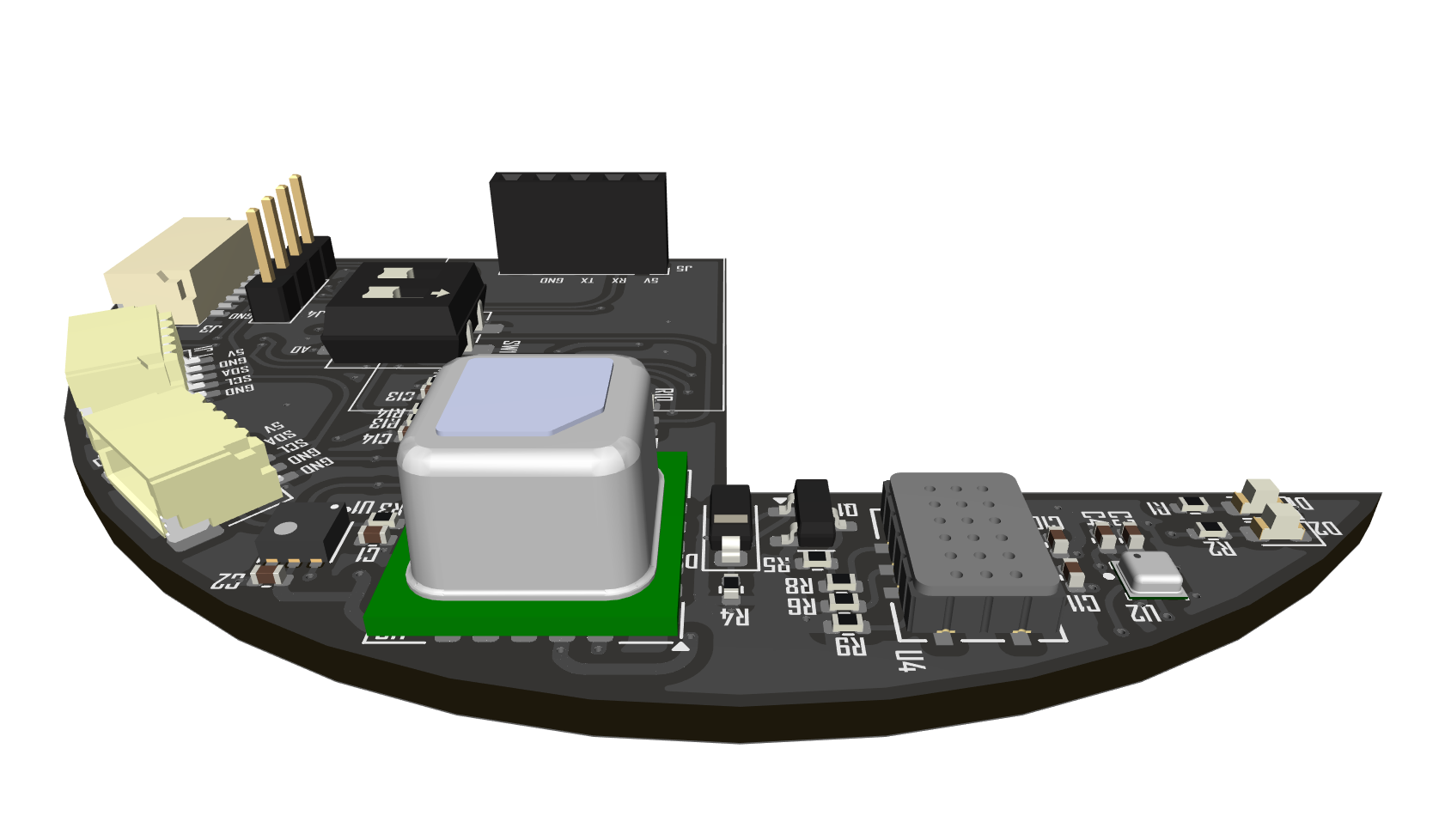

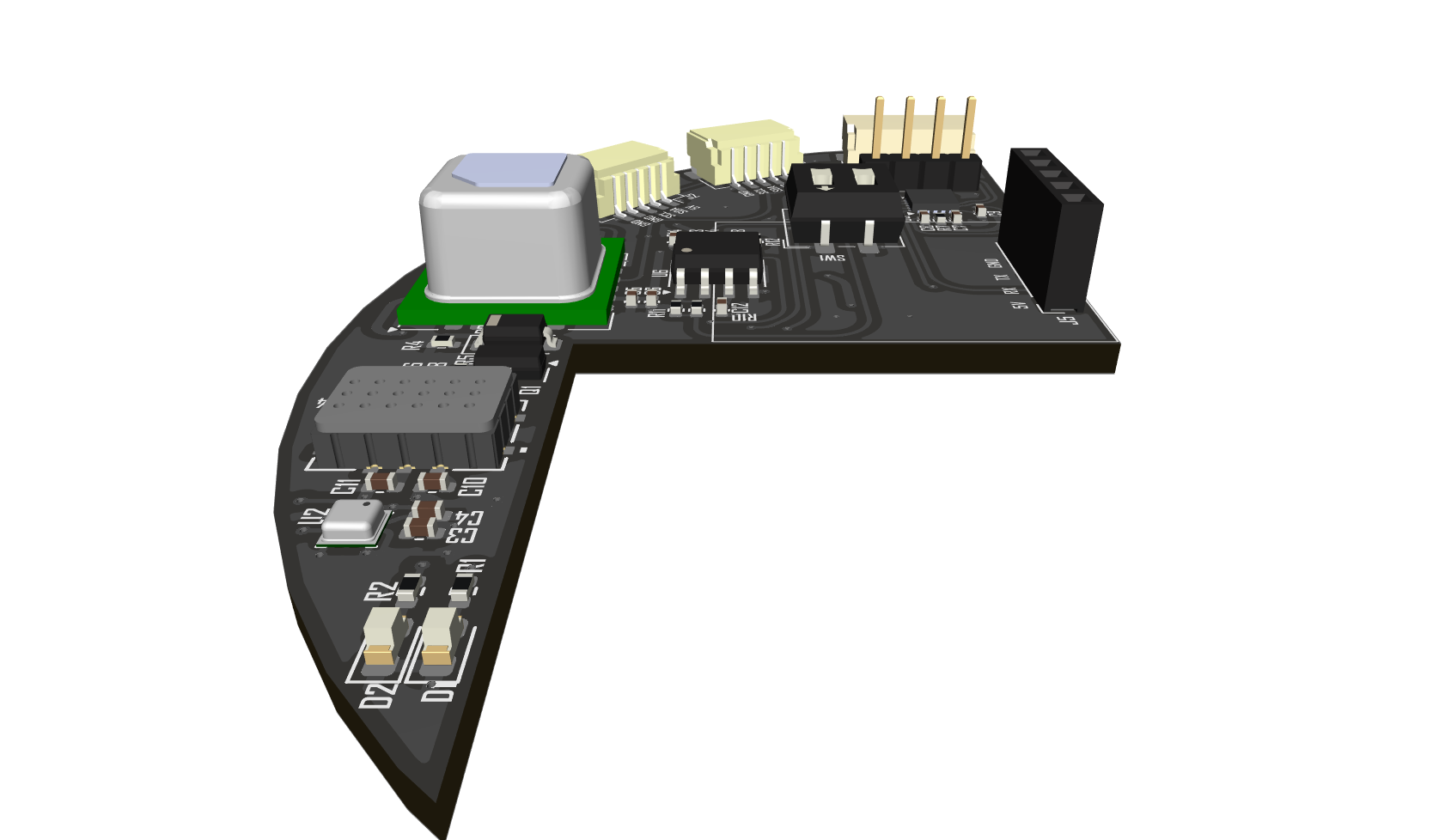

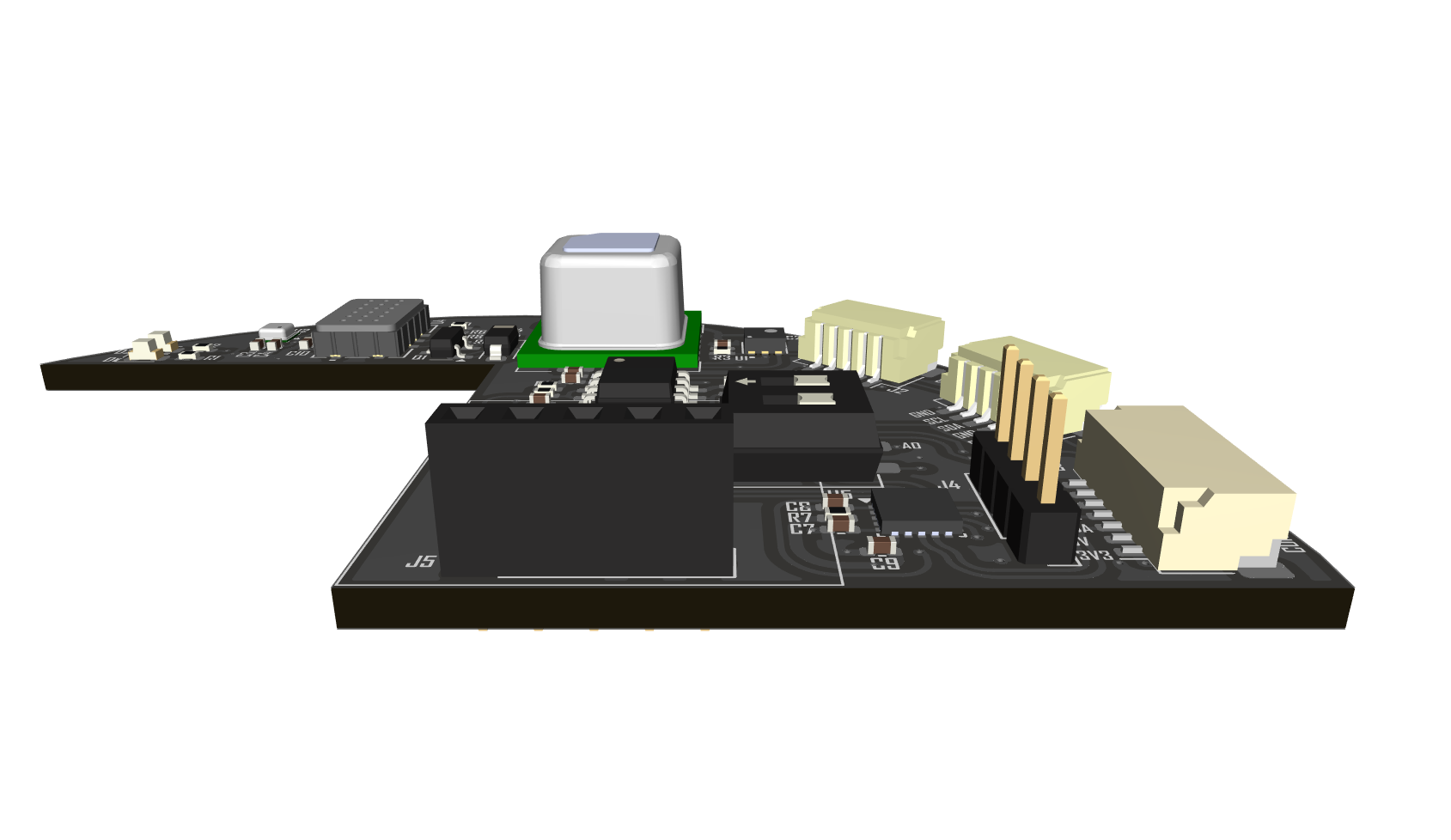

Enhance your Sense360 system with the AirIQ Module, integrating industry-standard sensors for VOC/NOx, CO₂, pressure, and multi-gas monitoring. MiCS4514 is digitised via the onboard SMT8 I²C bridge for plug-and-play modularity.
Sensors included:
-
SGP41: Volatile Organic Compounds (VOC) & Nitrogen Oxides (NOx)
-
SCD41: Carbon Dioxide (CO₂) + Temperature/Humidity
-
BMP390: Barometric Pressure
-
MiCS4514 (SMT8 bridge): Nitrogen Dioxide (NO₂) & Carbon Monoxide (CO)
Perfect for:
Smart home air monitoring, HVAC, research, IAQ dashboards, and smart building integrations.
AirIQ Base – Quick Spec Table
| Attribute | Details |
|---|---|
| Sensors | SGP41 (VOC/NOx), SCD41 (CO₂/Temp/RH), BMP390 (Pressure), MiCS4514 (NO₂/CO via SMT8 I²C bridge) |
| Formaldehyde | Add at checkout |
| Ozone | Add at checkout |
| Particulate | Add at checkout |
| Interface | I²C (auto-detect, address managed) |
| Power | 3.3V/5V (see datasheet) |
| Outputs | VOC, NOx, CO₂, Temp, RH, Pressure, NO₂, CO |
| SKU | S360-AIRQ-001 |
