Sense360 Pure Frame – Modular DIY Air Purifier Enclosure

Sense360 Pure Frame – Modular DIY Air Purifier Enclosure

£79.99 GBP
£99.00 GBP £79.99 GBP
Sale Sold out
Taxes included.

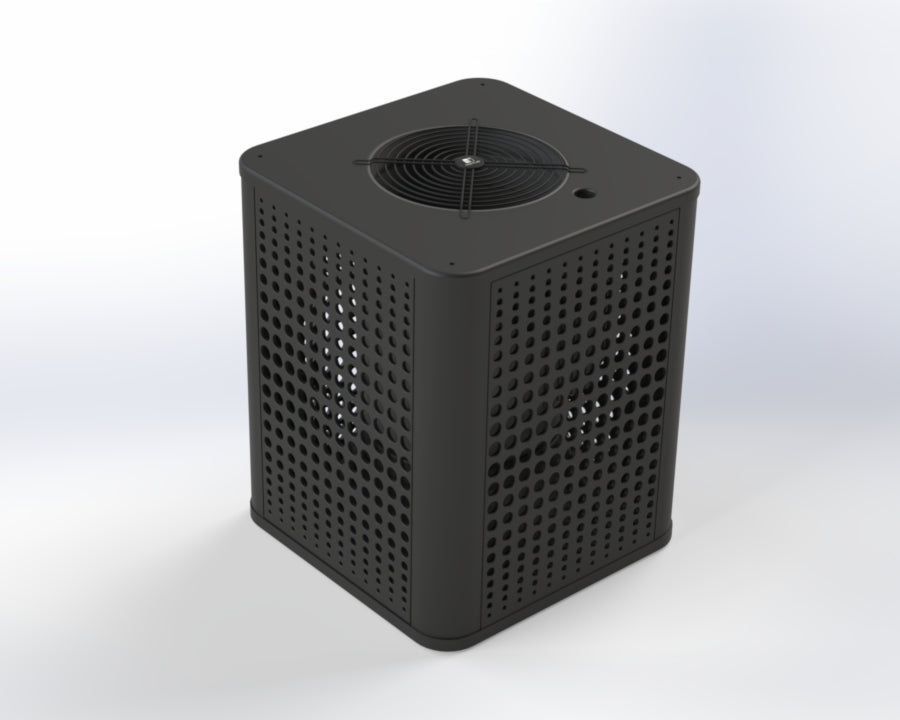

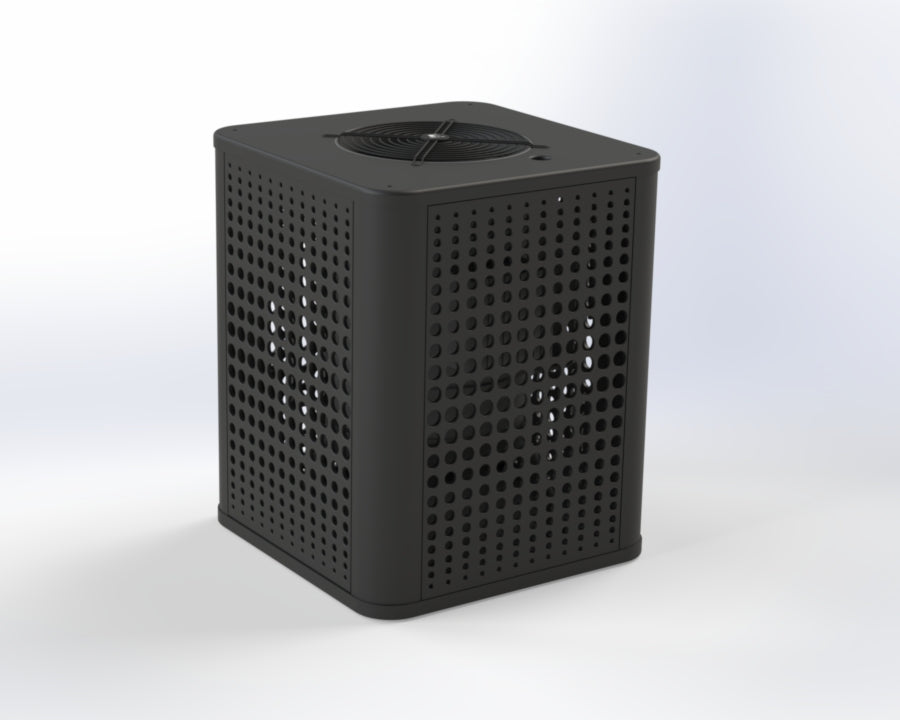

Sense360 Pure Frame is the foundation of the Sense360 air purifier system — a precision 3D-printed PETG-CF enclosure designed to pair with widely available filters and fans. This is the base frame only (fan and filters sold separately), giving you the flexibility to configure airflow and sensing your way.

What’s Included

  • 3D-printed PETG-CF frame (top, bottom, four legs, protective metal grille)
  • Available in Black (additional colours coming soon)

Compatible Components (Sold Separately)

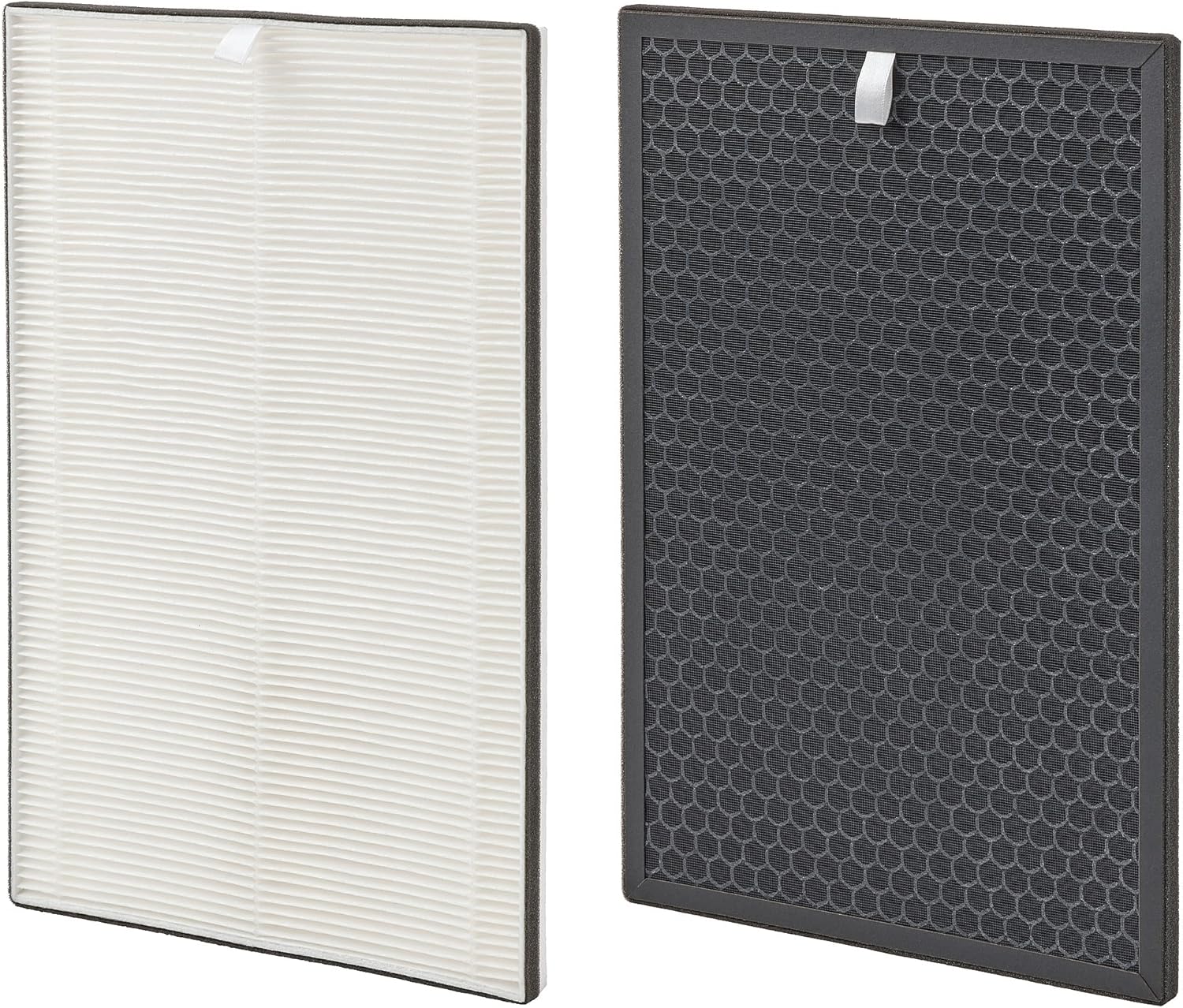

  • Filters: 4 × IKEA FÖRNUFTIG particle + 4 × IKEA carbon filters (~£15 per set, widely available in the UK)
  • Fan: AC Infinity Cloudline S8 (default) — optional S6 top plate compatibility
  • Sense360 Modules: Expand with AirIQ (air quality), Core (controller), Fan Module, Comfort Module, and more

Performance (Indicative)

Performance varies depending on filter type, fan model, and speed setting. Indicative results for an S8 fan with IKEA filters in the Pure Frame:

  • Airflow (CFM): ~200–400
  • CADR: ~150–300 CFM effective
  • Noise: ~30 dB (low, level 1) to ~75 dB (max, level 10)

Note: These figures are indicative estimates, not laboratory-certified results. Actual performance depends on fan choice, filter condition, and installation.

Quick Spec Table

Attribute Details
Material PETG-CF (carbon-fibre reinforced, 3D-printed)
Colour Options Black (more colours coming soon)
Fan Compatibility AC Infinity Cloudline S8 (default) / S6 (optional top plate) sold separately
Filters 4 × IKEA FÖRNUFTIG particle + 4 × IKEA carbon sold separately
Airflow ~200–400 CFM (indicative with S8 + IKEA filters)
CADR ~150–300 CFM effective (indicative)
Noise Estimated noise levels by fan setting:
  • Level 1: 36.1 dB
  • Level 2: 43.6 dB
  • Level 3: 50.1 dB
  • Level 4: 55.7 dB
  • Level 5: 60.1 dB
  • Level 6: ~63.6 dB
  • Level 7: ~66.4 dB
  • Level 8: ~68.6 dB
  • Level 9: ~70.3 dB
  • Level 10: ~71.5 dB
Indicative figures only — not lab-certified
Expandable Compatible with Sense360 Core, AirIQ, Comfort, Fan Module sold separately
Included in Box Enclosure frame (top, bottom, legs), protective metal grille
SKU S360-PURE-INFINITY-001

100 in stock
